EARS Templates in QVscribe for DOORS Next

EARS or the Easy Approach to Requirement Syntax is a standard for writing requirements that will improve the quality of your written requirements. Read more here.

EARS Templates in QVscribe

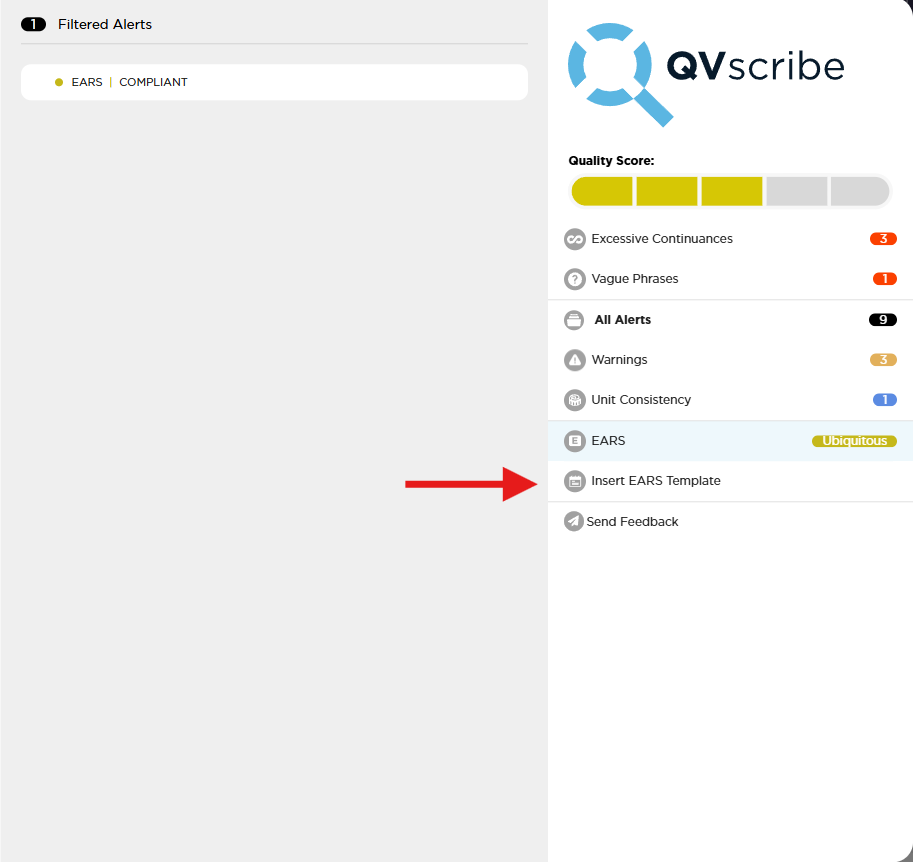

When users are viewing a requirement in QVscribe's authoring view, there is an option to insert an EARS template.

Select Template Type

Select from one or more of the EARS templates made available within QVscribe.

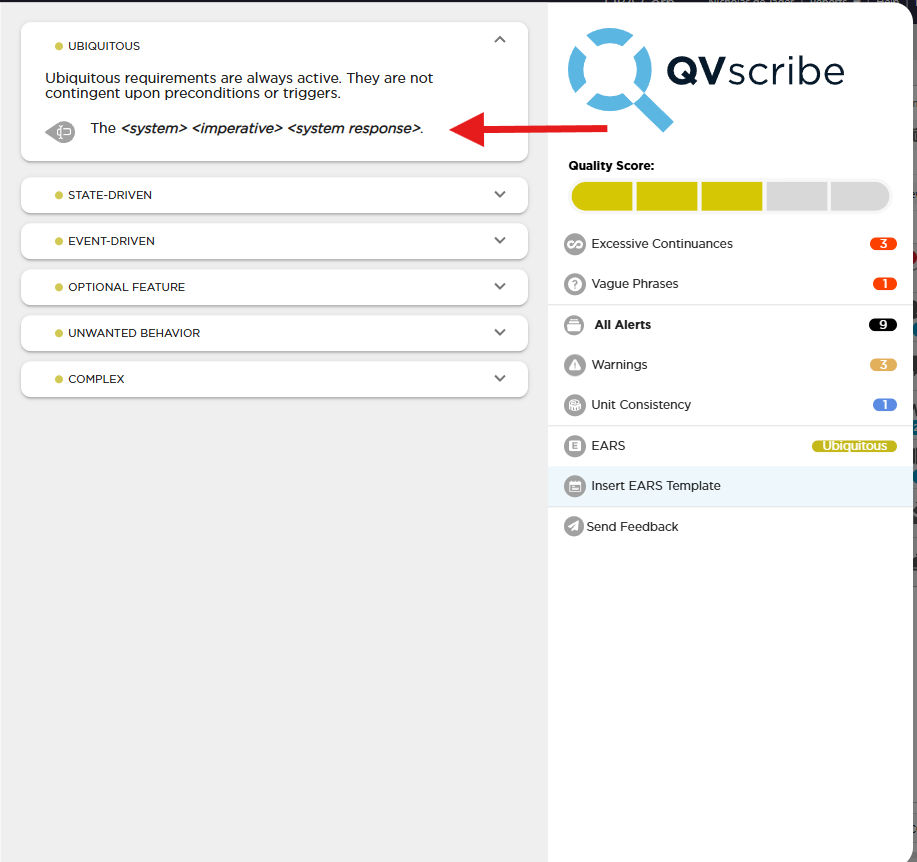

Insert a Template

Expand any option to view the full template and display the link to insert it into the authoring view. Click the grey icon to insert the template into your requirement.

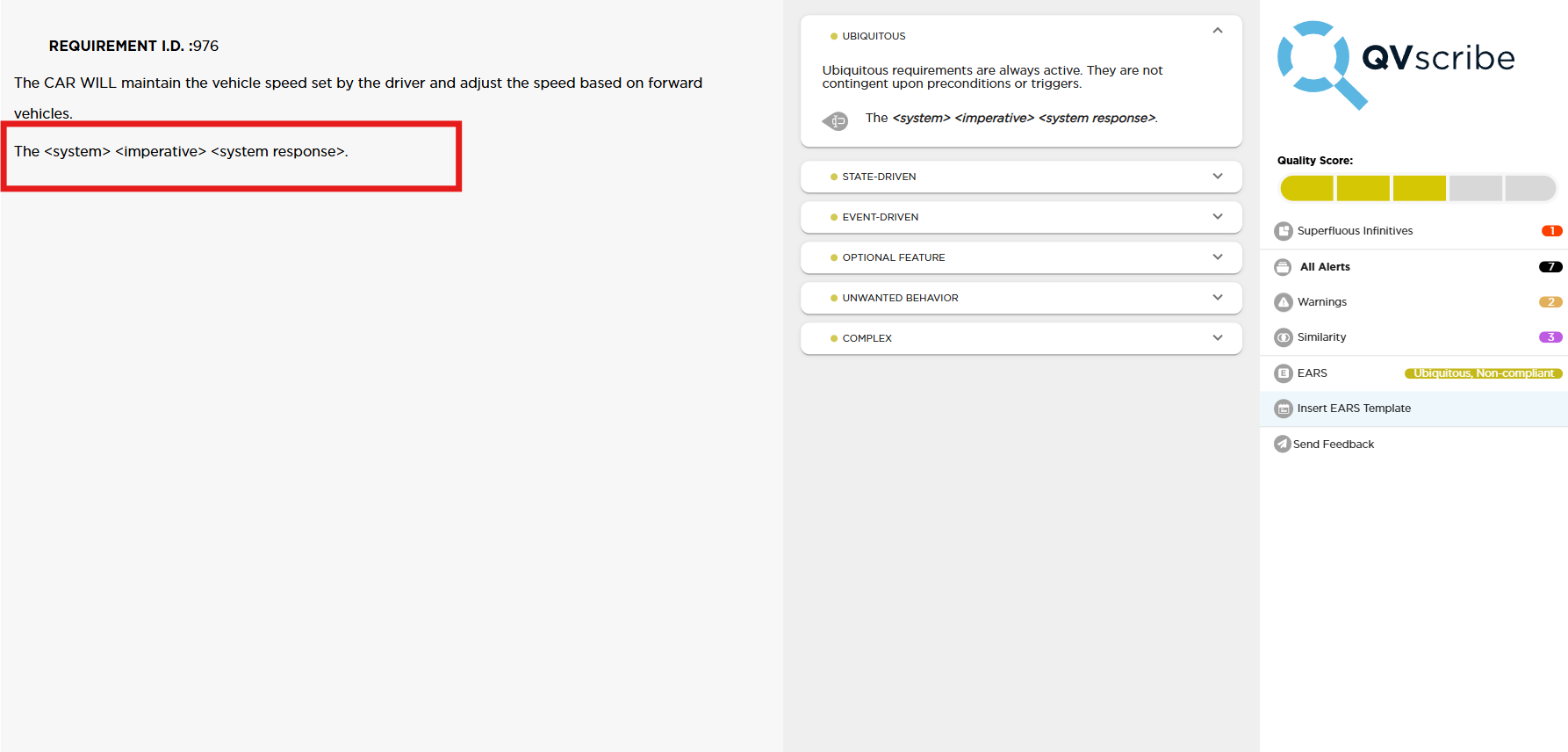

Edit the Template

Once the template has been added to the requirement section, you are able to modify it freely. After modification QVscribe will check for conformance with any EARS template and score it according to the active configuration.

All 12 EARS templates are described in detail below.

EARS Type	Description	Template
Event-driven	An Event-driven requirement is activated when a triggering event is detected at the system boundary	WHEN <trigger> the <system name> shall <system response>
Option	An Option requirement is used for systems that include a particular feature	WHERE <feature is included> the <system name> shall <system response>
State-driven	A State-driven requirement is active while some pre-condition remains true	WHILE <pre-condition> the <system name> shall <system response>
Ubiquitous	A Ubiquitous requirement is continually active	The <system name> shall <system response>
Unwanted behaviour	An Unwanted Behaviour requirement defines the required system response to an unwanted external event	IF <trigger> THEN the <system name> shall <system response>
Complex	A Complex requirement contains a combination of the basic EARS patterns	See table 3 below

Complex EARS Template	Label
WHERE <feature is included> WHILE <pre-condition> IF <trigger> THEN the <system name> shall <system response>	Optional feature, state-driven, and unwanted-behaviour
WHERE <feature is included> WHILE <pre-condition> WHEN <trigger> the <system name> shall <system response>	Optional feature, state-driven, and event-driven
WHERE <feature is included> WHILE <pre-condition> the <system name> shall <system response>	Optional feature, and state-driven
WHERE <feature is included> WHEN <trigger> the <system name> shall <system response>	Optional feature, and event-driven
WHERE <feature is included> IF <trigger> THEN the <system name> shall <system response>	Optional feature, and unwanted behaviour
WHILE <pre-condition> IF <trigger> THEN the <system name> shall <system response>	State-driven, and unwanted-behaviour
WHILE <feature is included> WHEN <trigger> the <system name> shall <system response>	State-driven, and event-driven
